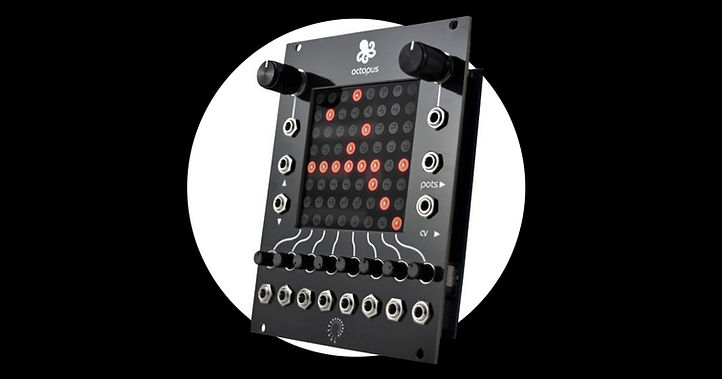

OCTOPUS


SWITCH 8 POTS, 8 SIGNALS

Octopus is a dual 8 way multiplexer/switch allowing to sequence up to 8 signals or potentiometers .

Sequence pitch with pots, switch cv inputs, so many possibilities!

The horizontal axis sets the channel, the vertical axis stores 8 channel positions.

The fun begins when you start sequencing or modulating the channel selector either:

  • Manually by use of the two large potentiometers

  • by overriding the potentiometers with CV (0-5V DC)

  • by moving up and down the vertical axis via Triggers (5v DC pulse)


Size: 20HP Wide, 25mm deep

Current consumption:

12V: 22mA
-12V: 4mA

Unit includes 16pin power cable and screws
