THERAPSID
SID UNDER FULL CONTROL

MKIII: THIRD & FINAL

What's new:
-Output jacks have been upgraded from 1/8" to 1/4"
-MIDI jacks have been upgraded from 1/8" to DIN5
-Power switch added

Named after a vicious dinosaur, its sound is no less aggressive.

TherapSid has evolved to create roaring noises that will cut through your mix like razor-sharp claws through a mammoth steak.

So why do you need another synth, since they already take 90% of the space in your room and your significant other keeps complaining about it?



Well, what sets TherapSid apart from other SID based synths is its focus on control. Instead of getting confused by lcds and damaging your eyesight trying to read tiny sub menu fonts, this instrument features no less than 35 knobs and 33 buttons to give you full power over your sound.

TherapSid is lovingly handcrafted in the south of France and packed with enough features to keep you busy until the next ice age. You can assign LFOs to knobs with one push of a button, you can also override the LFOs with analog control voltages. The arpeggiator is a lot of fun with its unique scrub feature. 100 Presets are included to get you started.

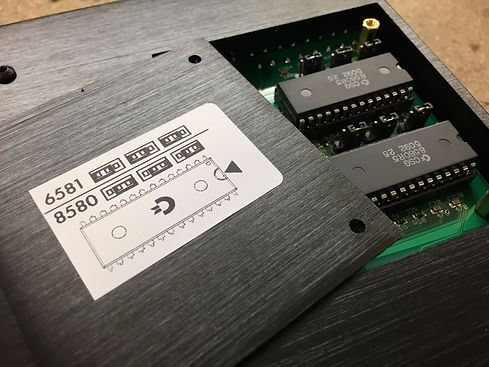

TherapSid is compatible with all variations of the SID chip including 6581, 8550 (6582) & Swinsid and it is simple to install your own.

TSID3 -2.jpg
TSID3 -2.jpg

FEATURES

  • CV/Gate control

  • 3 Oscillators, 4 waveforms per osc.

  • LFOs sync to MIDI clock

  • Multimode analog Filter (LP BP HP LP+HP)

  • Filter can be assigned to each voice individually

  • Compatible with all SIDS (6581,6582/8580,swinSid)

  • 3x CV inputs for LFO override

  • MIDI output for preset dumping, arpegiator, and CCs on all knobs and buttons

  • Paraphonic 3 voice mode

  • Multi timbrall: the 3 voices can be played on separate MIDI channels

  • LFO assignable to ADSR envelope 3

  • Preset reset (uses preset#1 as template)

  • Preset randomizer

  • Arpeggiator with 4 auto modes and manual scrubbing

  • Multi-sid (4 stereo fat modes) You can mismatch different SID types

  • VST Editor for integration with your DAW

  • Dimensions: 25cm x 15cm x5cm

SID NOT INCLUDED

TherapSID no longer includes SID chips. We have ran out!

If you already have a SID, you are welcome to send it to us for testing and setup.

DOWNLOADS

User Manual

Updated September 24th 2021

MIDI VST Editor

For PC & Mac

FIRMWARE UPDATES

R1.9

-Fixed a bug causing long MIDI delay if MIDI is received during startup
-Optimised for VST editor
-LFO Midi send can be activated/deactivated (via CC or editor)
-ARP Midi send can be activated/deactivated (via CC or editor)
